Male Inst Blank Plug c/w 1/2" Chromed Samplers Tap Product Code: 10275A

Information

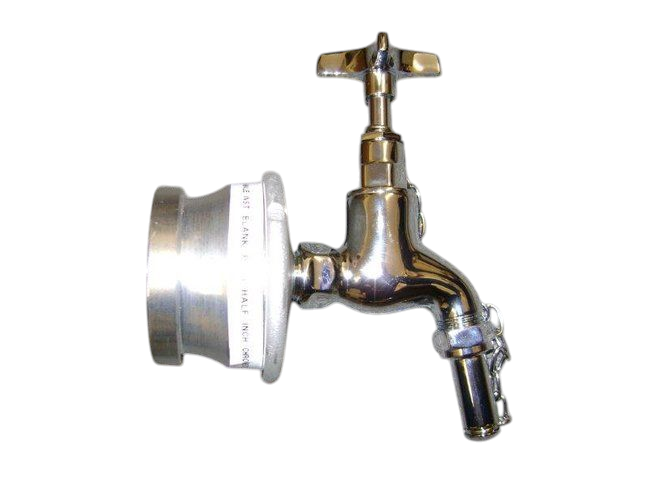

Male instantaneous connection fitted with chrome samplers tap.

To enable samples to be taken from a 2 1/2" hydrant standpipe.

The Vernon Morris Chrome Samplers Tap is supplied fitted to a male instantaneous fitting, with screwed outlet and flameproof bottle filling taper nozzle. It comes complete with a protective dust cap and retaining chain

Specification

  • Body manufactured from DCB3 cast brass, fitted with BS 1010 easi-clean capstan headwork
  • Jumper washer manufactured from EPDM quality rubber (WRAS approved)
  • Maximum working pressure - 5 Bar

Dimensions (Samplers Tap only)

  • Height = 154mm without cap
  • Height = 169mm with cap fitted and headwork open
  • Taper Nozzle length = 25mm
