B.Box Digital Flow & Pressure Standpipe 10 - 120 lpm c/w Digital Pressure Gauge Product Code: VM10003B

Information

The 3/4" Boundary Box Digital Flow and Pressure Standpipe is designed to measure both the pressure and flow rate (LPM) at the boundary box. The standpipe is fitted with a plastic (Acetal) boundary box base to reduce the risk of cross threading the base into the meter box

The Boundary Box Digital Flow and Pressure Standpipe is supplied in two variants:

Digital Turbine Meter with Digital pressure gauge (Part No. VM10003B)

OR

Digital Turbine Meter with Analogue pressure gauge as illustrated (Part No. VM10003A)

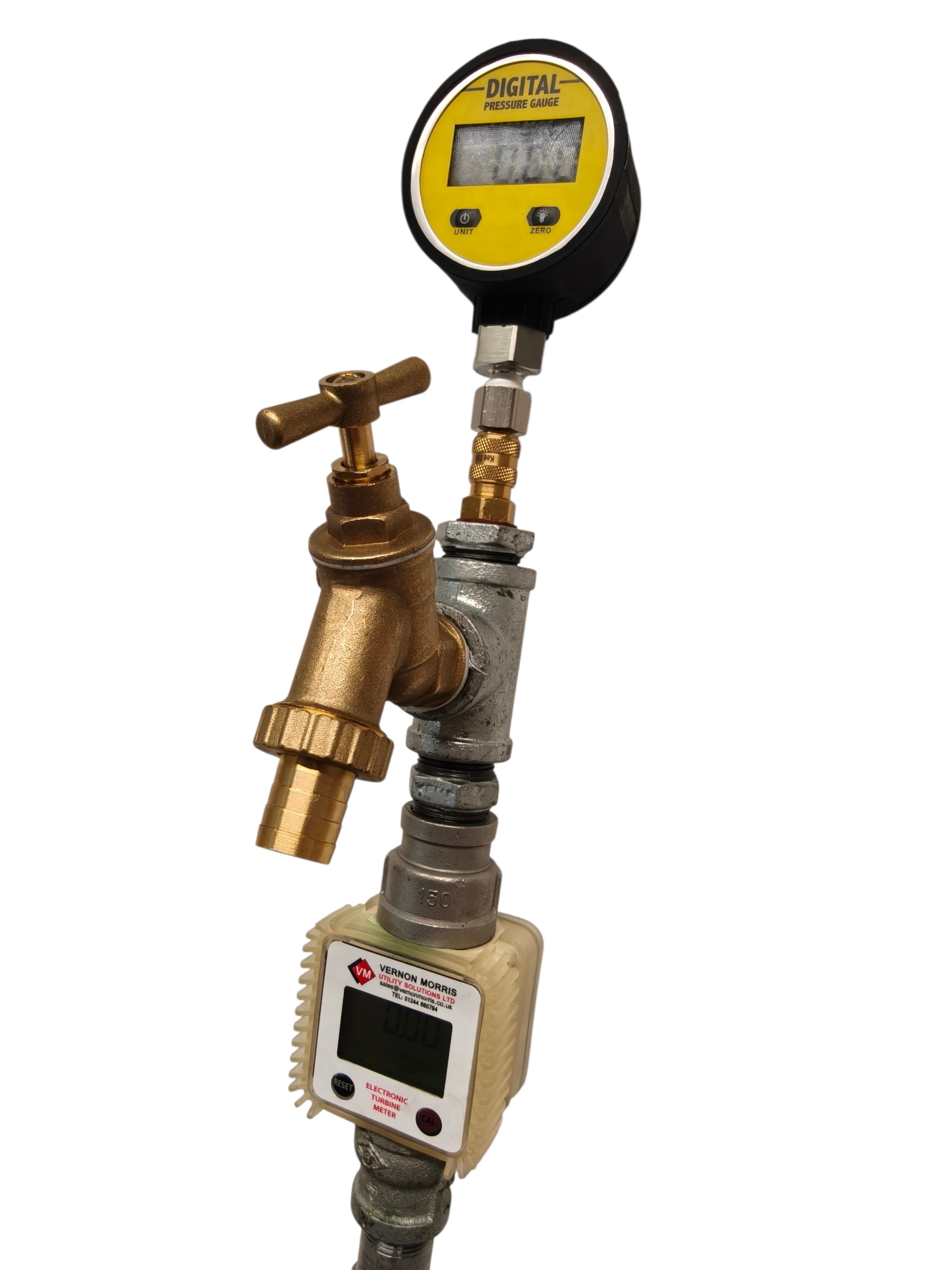

Specification (Part No. VM10003B) as illustrated

• Digital Turbine meter 10 - 120 LPM
• Digital Pressure Gauge (0 – 30 Bar)

 Specification (Part No. VM10003A)

• Digital Turbine meter 10 - 120 LPM
• 63mm 140/14Bar pressure gauge

Turbine Meter Specifications

• Measurement accuracy: ± 1%
• Repeatability: ± 0.5%
• Maximum working pressure: 20 BAR
• Flow range: 10-120 lpm
• Single count: 0.00-999.9
• The total cumulative number: 0.00-999999.9
• Unit: Litres, Gallons, Pints, Quarts
• Single measurement cleared: RESET

Digital Pressure Gauge Specifications

• Range:             (0 – 30 Bar)
• Accuracy:        1%
• Units:               Bar, PSI, MPa, KPa, Kgf/cm²
• Connection:     ¼” BSP fitted with male probe
• Batteries:         2 x AAA (Supplied)
