Digital Flow & Pressure Test Kit Product Code: TK750

Information

Digital Flow & Pressure Test Kit

Designed for ease of use for Inspectors within utility, domestic plumbing and heating industries.

This kit enables you to check and identify low pressure and flow. The Turbine meter has a flow range of 10 – 120 LPM. A range of plastic tap adaptors enables the gauge to be attached to most domestic taps.

The kit can also be used to check the flow and pressure at the boundary box using a B.Box standpie and connecting the device to the hose union bib tap (using a round tap adaptor)

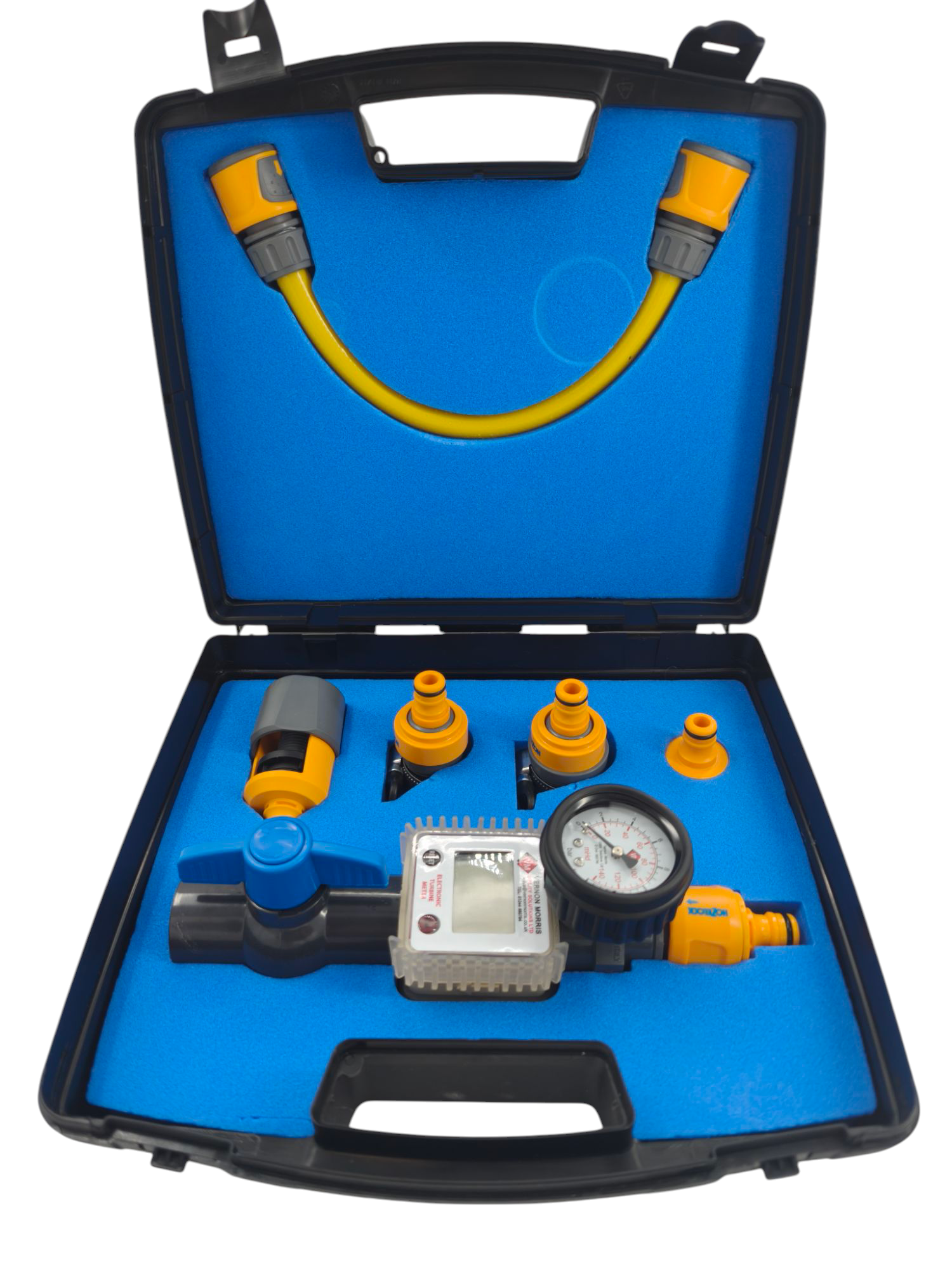

Each Kit Includes:

• Carry Case with Inlay.
• Turbine flow meter assembly to include 14 Bar analogue pressure gauge and 1” Ball valve.
• A selection of tap adaptors and connection hose.

Specifications:
Model: K24
Measurement accuracy: ± 1%
Repeatability: ± 0.5%
Maximum working pressure: 20BAR
Flow range: 10-100L / MIN
Single count: 0.00-999.9
The total cumulative number: 0.00-999999.9
Unit: L / L, gal / GAL, pint / PTS, quart / QTS
Single measurement cleared: RESET
