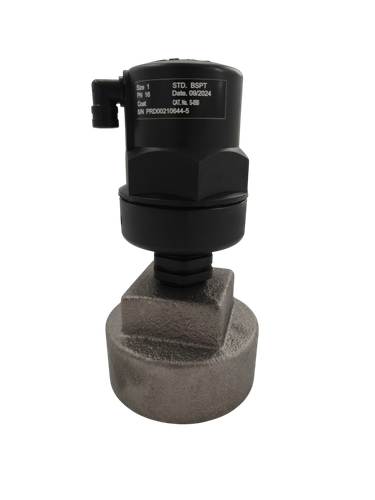

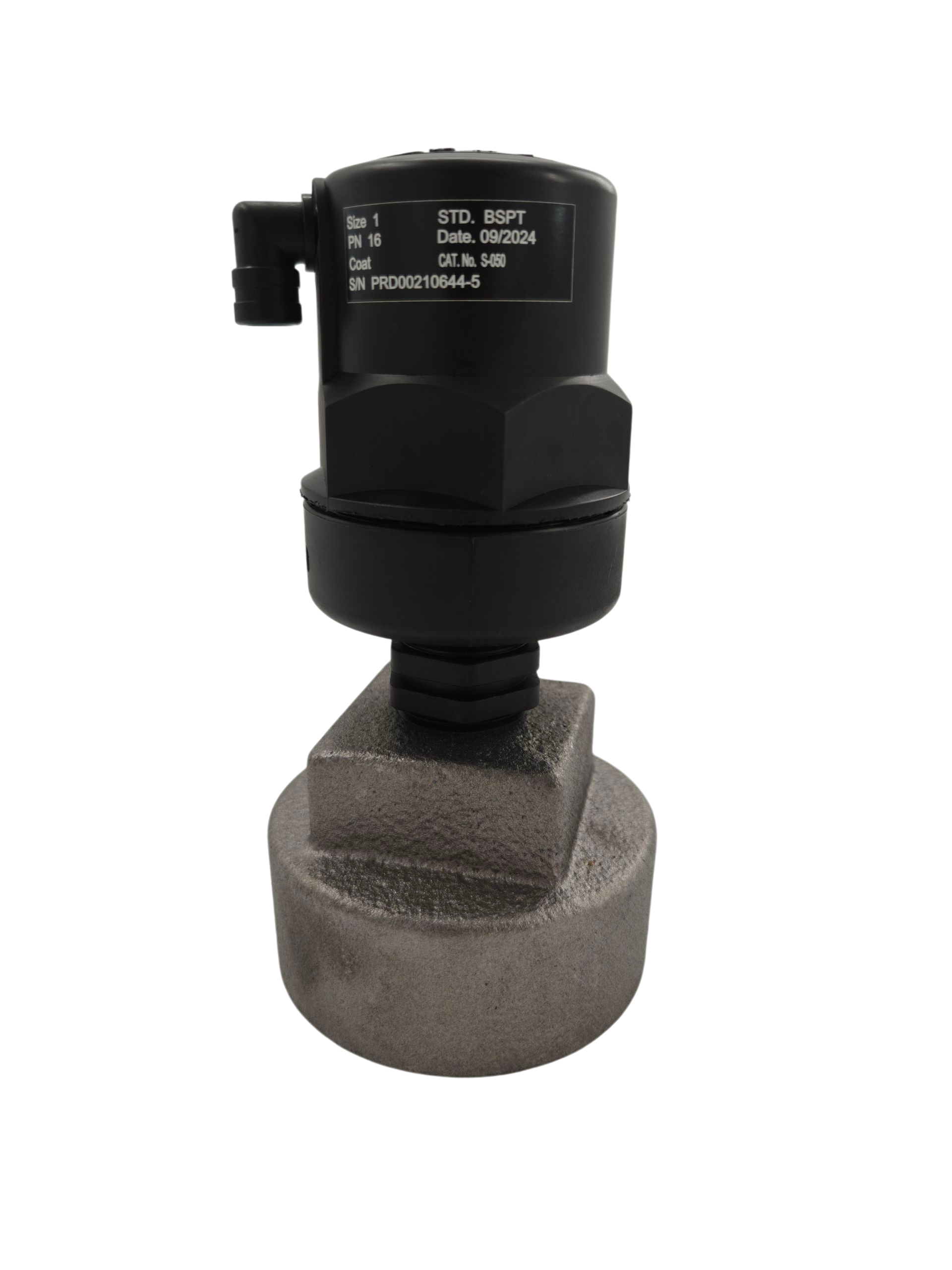

25mm Air Valve Single and LRT Base Product Code: AV1COMP

Information

The single orifice air relief valve mounted directly onto an LRT hydrant cap to provide an air release capability 10 times greater than a conventional valve.

Specification:

Weight: 300g (air valve)

Material: Composite body with EPDM rolling seal.

Connection: 1” BSP male thread

WRAS approved

Max Working Pressure: 16 Bar

Temperature Range: -10⁰C to +70⁰C

Air valve and base can be purchased separately.
