Hikmicro AD21P Acoustic Leak Detector Product Code: AD21P
Information
The Hikmicro is an indoor leak detector with two inspection modes (Inspection Mode and Quick Inspection) for fast leak location. This can be used to identify leaks under the floor or in a void.

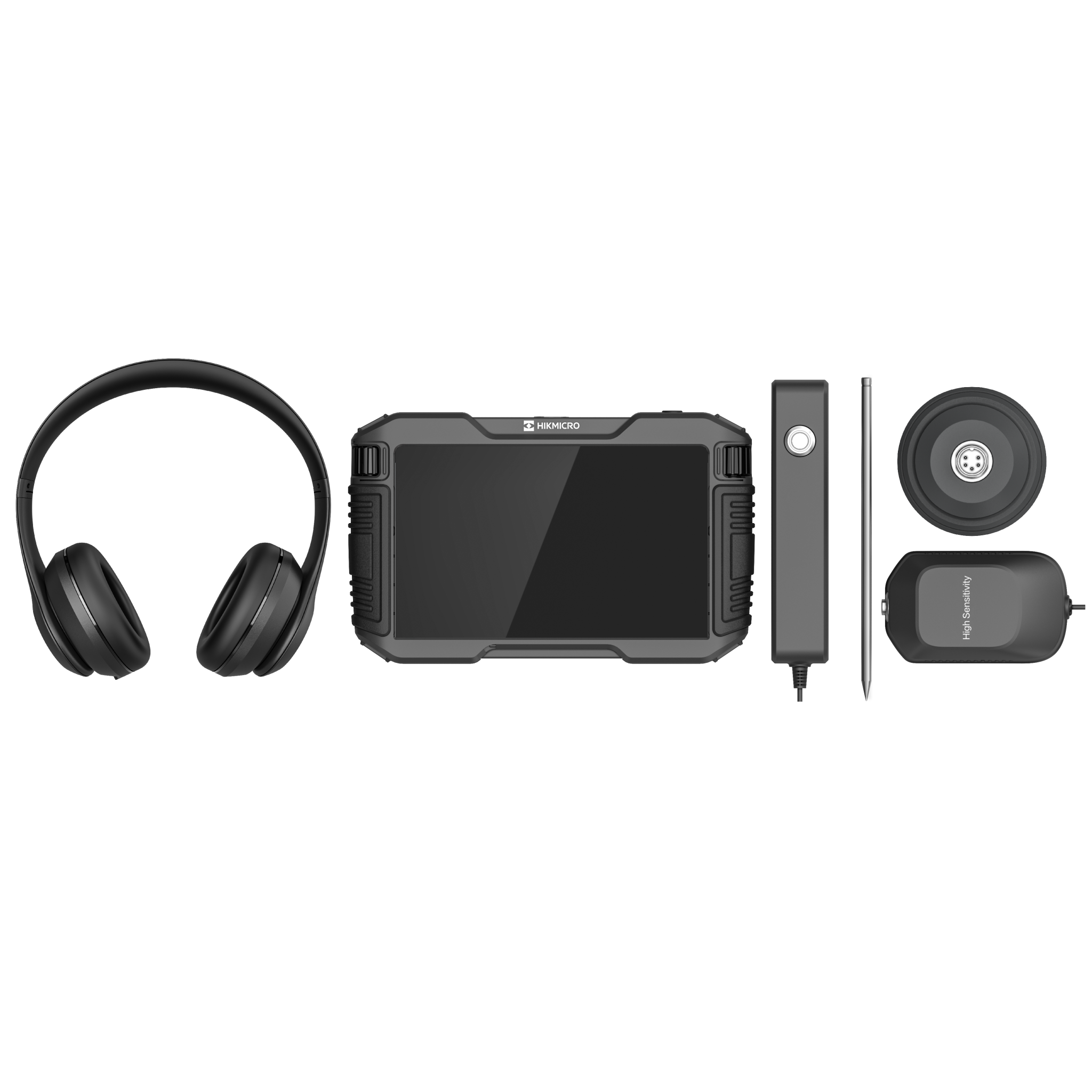

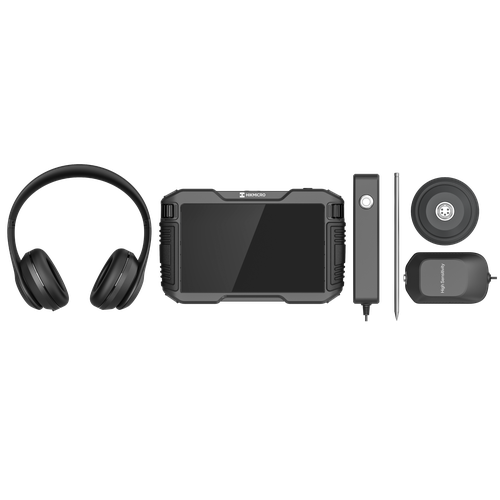

The kit comprises of:
- Main unit
- Handheld sensor
- Pick-up sensor
- Handle grip
- Headset
- Power supply for battery charger
- International use plugs (US/EU/UK/AU)
- USB 2.0 1 to USB Type-C Cable
- Pouch
- Quick Start Guide
- Calibration certificate.
|
Acoustic |
|
|
Frequency Range |
150-7500Hz |
|
SuperDetect |
Yes |
|
Amplification |
Manual adjustment |
|
Band Pass Filter |
Indoor low-frequency 150Hz to 300Hz Indoor mid-frequency 3000Hz to 6000Hz Indoor high-frequency 4500Hz to 7500Hz Indoor all-pass 150Hz to 7500Hz |
|
Image Display |
|
|
Display |
1024 x 600 Resolution 7” LCD Touch Screen |
|
Screen Brightness |
Manual/Auto |
|
General |
|
|
Storage Media |
Built-in EMMC (4GB) |
|
Audio Storage Capacity |
Approx. 20 hours, viewable only on PC |
|
Working Temperature Range |
-10oC to 50oC (14oF to 122oF) |
|
Drop Test Height |
1.2m (3.93 ft) |
|
Battery Type |
Rechargeable Li-ion Battery |
|
Battery Operating Time |
Up to 11 hours |
|
Battery Charging Time |
4h full charge |
|
Protection Level |
Main Unit: IP40 Hand held sensor: IP54 Pick-up sensor IP66 |
Availability: In Stock
£POA
Please enquire for the latest pricing & availability information for this item
