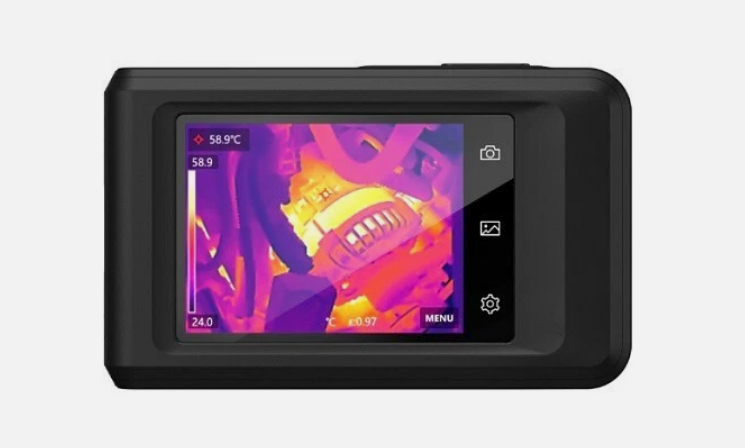

Hikmicro Pocket 2 Thermal Camera Product Code: POCKET2

Information

Hikmicro Pocket2 is a high performance compact thermal imaging camera, which perfectly fits into your pocket and toolbag.  It is rugged and a durable design with a LED flashlight and on-camera recording.  There are three levels and span modes (manual, automatic and 1-Tap) to instantly improve image contrast and highlight potential problems.  It has a built-in speaker and flash light give the operator audio and visual alerts to high temperatures.  Full-screen measurement using different user presets checks everywhere instantly.  Weights approximately 218 grams. It provides 4 hours of continuous running.  IP54 rated.

Connect (Wi-Fi or Hotspot) to the Hikmicro Viewer app for transmitting pictures from the camera to a mobile phone.  Analyse, share images and generate simple reports in real-time on-site.  Use Hikmicro Analyzer PC software to provide customers with professional reports with image documenting.

The Pocket2 comprises of:

• Thermal Imager
• Pouch
• Wrist strap
• USB cable
• Power supply
• Quick Start Manual
• Calibration certificate

The Pocket2 has multiple applications:

• electrical inspections;
• hot water pipes;
• PCB circuit boards; and
• HVAC.

Thermal Module:

• Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
• IR Resolution: 256 x 192 (49,152 pixels)
• Image Frequency: 25Hz
• Focus: Fixed

Optical Module

• Picture Resolution: Configurable 2MP, 5MP 8MP

Measurement and Analysis

• Object Temperature Range: -20^oC to 400^oC (-4^oF to 752^oF)
• Measurement Presets: Centre Spot, Hot Spot, Cold Spot, Off
• High Temperature Alarm: Audible/visual alarm of above temperature threshold, User-defined temperature threshold

Storage

• Storage Media: EMMC (16GB)
• Image Storage Capacity: Approx. 60,000 images
• Image File Format: Radiometric JPEG with Measurement Data included
• Video Storage Capacity: Approx. 10 hours
• Video File Format: Standard MP4 Non-radiometric video
