Lever Branchpipe Product Code: ZZ049

Information

LEVER BRANCHPIPES

Designed for easy handling by the operator, the AWG Lever Operated branchpipe gives a hard penetrating jet with the option to change over to a spray pattern. Manufactured in robust Light Alloy, they are also available in Plastic and Gun Metal for Marine application Nozzle tip sizes vary with the additional option of a protective curtain facility. The standard inlet connection is 2 ½” Male Instantaneous although other coupling types are available.

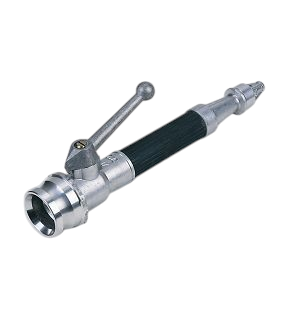

The model illustrated has a 9mm nozzle tip (Part No. ZZ049)

Branchpipe Type

Nozzle Tip

Inlet Pressure

Flow Rate (i/min)

Throw Distance(m)

Water Curtain













No 1

9mm

5

120/120

24/10



No 1

12mm

5

215/215

26/11



No 1 C

12mm

5

365/365

26/11

    170

No 2

22mm

5

715/715

34/14



No 2 C

22mm

5

955/955

34/14

    170
